Products Smart Camera: P-Series (P2x & P3x)

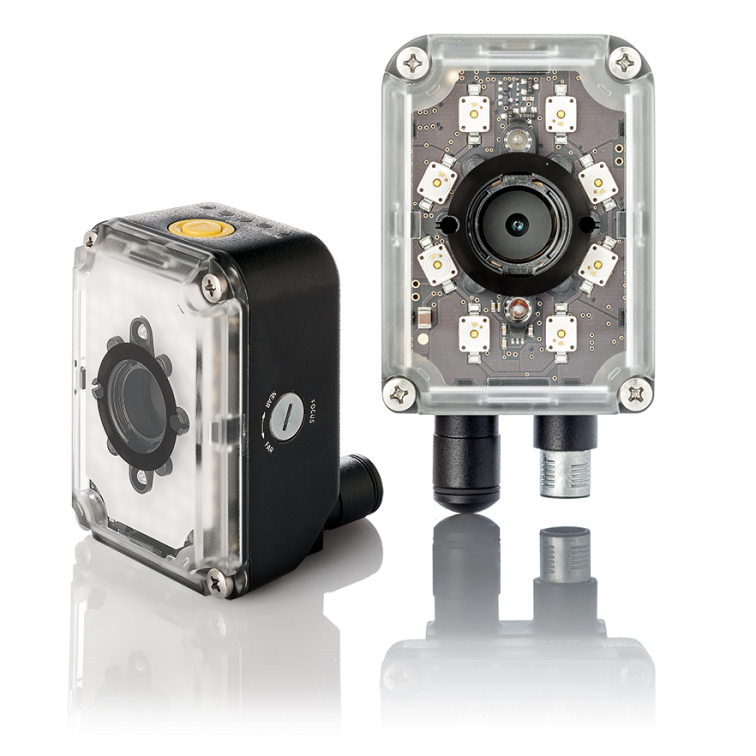

P1x-Series

The P1x Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device

Video Datasheet

Features & Benefits

  • Ultra-compact cost effective smart camera
  • VGA (640x480) or 1.3 MP (1280x1024) resolution
  • Grayscale or color CMOS image sensor
  • Built-in digital I/Os, Serial and Ethernet interfaces
  • Right-angle IP67 rated enclosure with rotating connectors
  • Embedded interchangeable lenses and illuminators

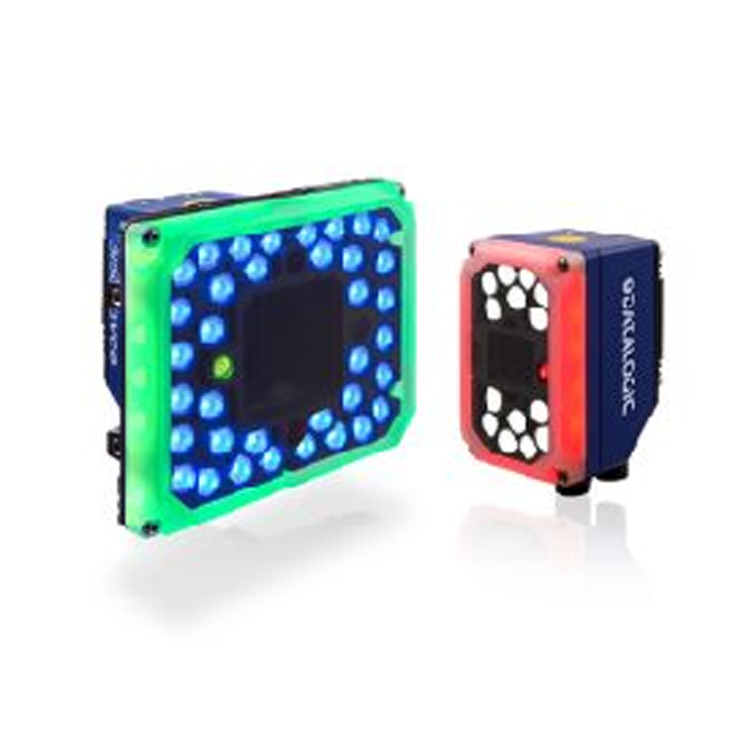

P2x- Series

The P2x-Series is an industrial smart camera providing exceptional inspection performance and flexibility in a fully-embedded compact housing.

Video Datasheet

Features & Benefits

  • qHD (960x540) and 2MP (1920x1080) resolution models
  • Available in monochrome and color
  • Two embedded illuminator sizes: 14-LED compact and 36-LED high power (white, blue and red)
  • 360° software configurable visual feedback
  • Field interchangeable lenses, illuminators and filters
  • Four different focal lengths: 6, 8, 12.5 and 17.5mm
  • Embedded accelerometer for orientation self-diagnostics

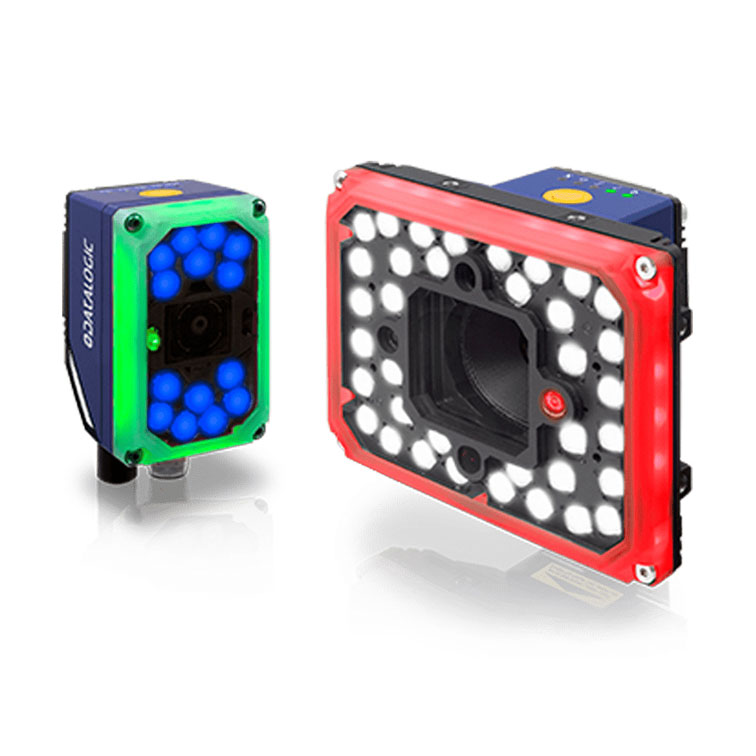

P3x- Series

High-end smart camera prwiding state of the art computing performance. With resolutions up to 5MP, P3x enables high-accuracy quality inspection and measurement applications.

Video Datasheet

Features & Benefits

  • Smart Camera, P35, Monochrome, 2560x1920, 26 FPS, 1/1.8" CMOS, C-Mount Lens
  • qHD (960x 540), 2MP (1920x1080) and 5MP (2560x1920) resolution imager options both available in monochrome and color
  • Field interchangeable lenses, illuminators and filters
  • Two embedded illuminator sizes: 14-LED compact and 36-LED high power both integrating TIR lenses to deliver maximum brightness onto the field of view available in 3 different colors (white, blue and red)
  • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
  • Innovative 360° software configurable visual feedback
  • Top industrial grade: -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating
  • Powered by IMPACT software suite with 100+ inspection tools
  • Add-on licenses to run even the most advanced Datalogic algorithms
