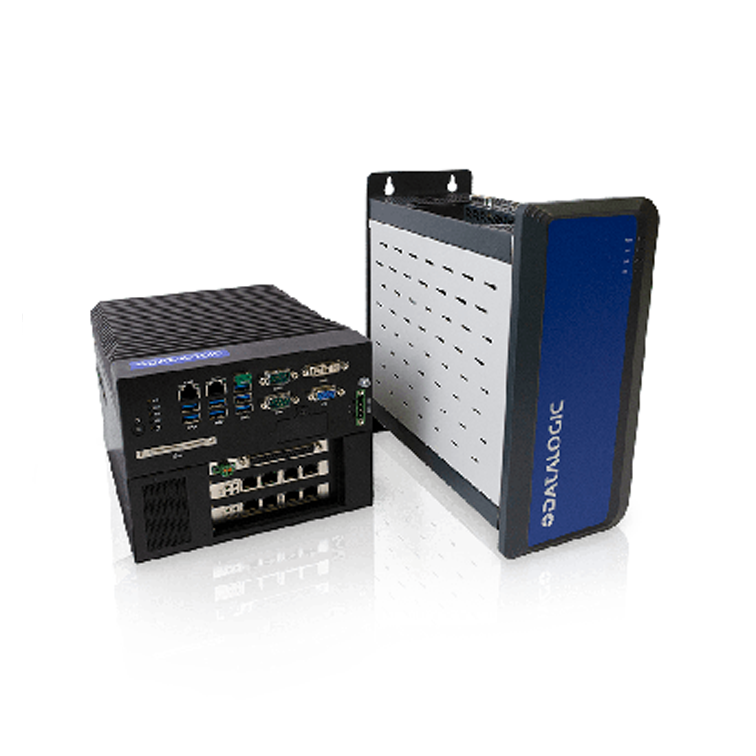

MX-E

MX-E vision processors support Gig-E multi-camera connectivity and ensure the highest performance in image processing

3 different computing power models: MX-E25 (entry level), MX-E45 (mid-range), MX-E90 (high-end)
Support from 2 to 8 independent GigE cameras simultaneously connected
Digital I/Os: 16 IN / 16 OUT (NPN or PNP)
Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
Configuration through IMPACT Software including advanced algorithms
State-of-the-art Windows 10 IoT operating system

MX-G series: rugged, industrial, GPU-powered vision processor
Running both PEKAT VISION (deep learning) and IMPACT (rule-based) machine vision software.
Training and inference on the edge, no need of additional PC, Server or Cloud computing.
Compatible with a wide range of cameras from VGA up to very high resolution
Supporting up to four Power over Ethernet (PoE) camera ports – PoE compliant cameras. Integrated Profinet and Ethernet/IP industrial fieldbus.

Rugged, industrial, GPU-powered vision processor
Running both Pekat (deep learning) and IMPACT (rule-based) machine vision software
Training and inference on the edge, no need of additional PC, Server or Cloud computing
Compatible with a wide range of cameras from VGA up to very high resolution
Supporting up to four Power over Ethernet (PoE) camera ports – PoE compliant cameras
Integrated Profinet and Ethernet/IP industrial fieldbus
16 IN + 16 OUT software configurable digital I/Os that can work either PNP or NPN mode (directly from website)
