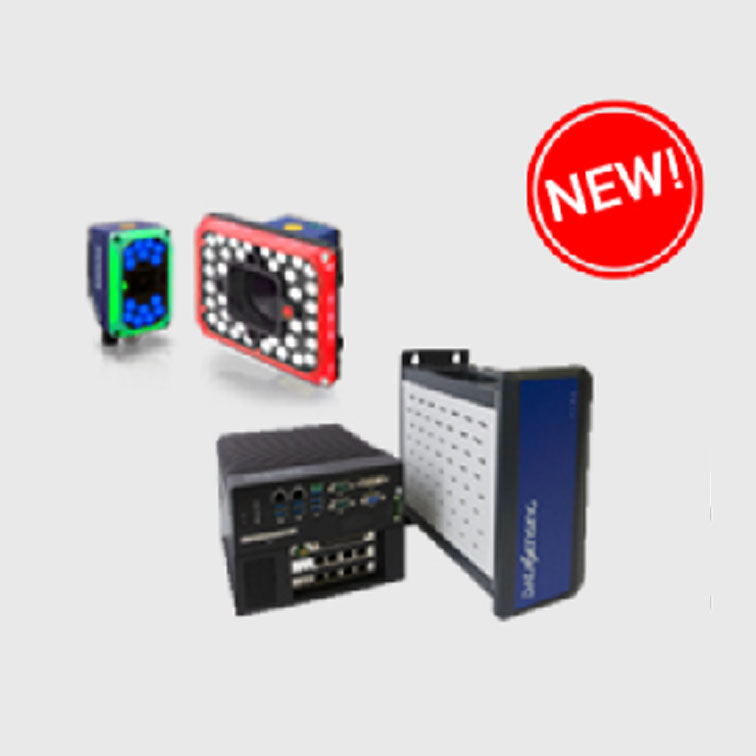

IMPACT 13.2 SCADA

SCADA, which stands for "Supervisory Control and Data Acquisition," represents a significant leap forward in the way machine vision devices are monitored and controlled. This new functionality is designed with a key focus on simplicity, efficiency, and customization in mind.

  • With SCADA, multiple devices can be monitored simultaneously from a single screen. No more switching between different windows to keep an eye on various devices is needed. This multitasking feature allows users to save time and enhance their productivity.

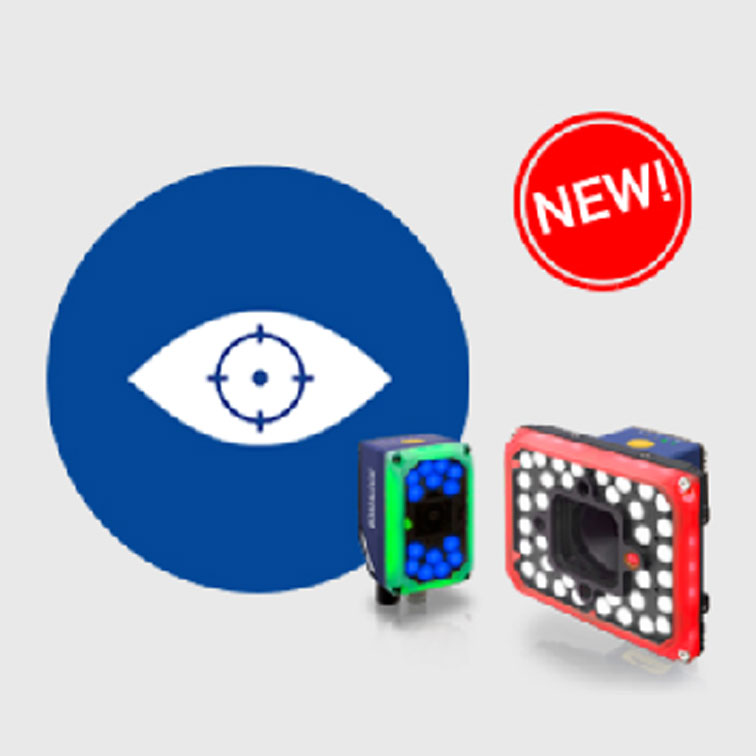

IMPACT 13.2 BLUEYE Tool

BluEye offers multiple methods to calculate pattern matching scores to address challenging applications with patterns having strong similarities

  • BluEye allows users to train up to 10 different patterns in one single tool instance streamlining the device configuration while reducing the inspection execution time.
  • BluEye tool is included in the IMPACT basic license. Supported by 13.2.x release or greater, it can run on both P2x smart cameras and MX vision processor series.

IMPACT Software

IMPACT is the extremely powerful software suite common to all Datalogic machine vision devices

Video Application
Sample Datasheet

Vision Program Manager (VPM) provides hundreds of image processing and analysis functions. Use VPM to enhance images, locate features, measure objects, check for presence or absence, and read text and bar codes.

Control Panel Manager (CPM) simplifies development of operator interfaces with the ability to make on-the-fly adjustments to critical machine controls. CPM creates operator interface panels to view and adjust critical machine controls

Pattern Sorting Tool

The Pattern Sorting Tool is a revolutionary and unrivalled new pattern matching tool for sorting applications

Video Datasheet

Recognition of patterns with random orientations and different sizes even if partially occluded; robustness against out-of-plane rotations and lighting variations

Pattern Find Tool

The Pattern Find tool quickly identifies patterns with high accuracy and repeatability

Video Datasheet

Easily take the found location coordinates and communicate them to other automation such as PLCs, robots, or databases on the network

Advanced OCR Tool

The advanced OCR tool is an extremely robust and reliable vision tool for challenging OCR applications

Video Datasheet

The advanced OCR tool is a powerful vision software tool able to read challenging alphanumeric strings printed over labels or directly marked (DPM) into industrial products. This new tool ensures robust and reliable reading of hard to read characters under difficult conditions, such us non-uniform background, variable light conditions, and curved surfaces.

utomatic string segmentation and character typing mode, as well as OCV and OCR string verification modes

IMPACT+OCR

A turn-key solution designed for Optical Character Recognition applications in Food & Beverage industry

Video Datasheet

Features & Benefits

  • Dedicated User Interface for fast OCR setup and easy-to-use Operator Interface
  • Compact IP67 Smart Camera with rotating connectors
  • Fully integrated interchangeable lenses and illuminators

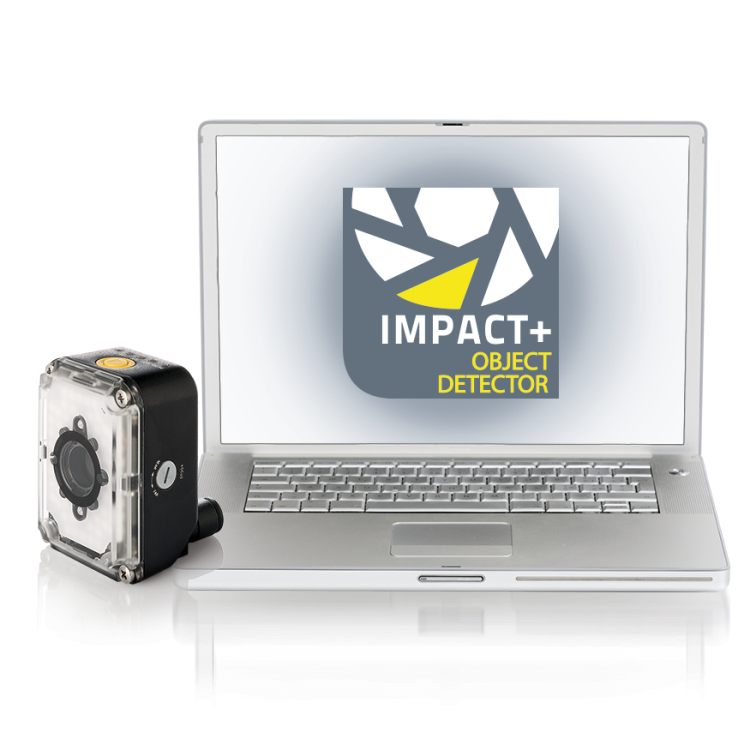

IMPACT+ OBJECT DETECTOR

The most effective machine vision solution for fast and reliable object detection applications for T&L Industry

Video Datasheet

Features & Benefits

  • Dedicated User Interface for fast OCR setup and easy-to-use Operator Interface
  • Compact IP67 Smart Camera with rotating connectors
  • Fully integrated interchangeable lenses and illuminators
  • Image capturing with infrared lighting
